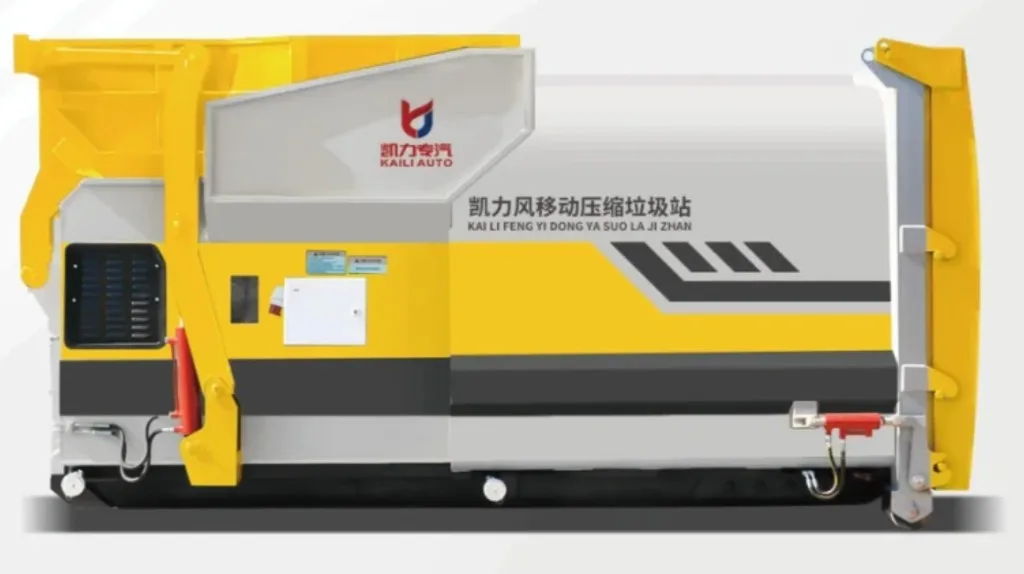

KLFYD-10A Mobile Trash Compactor (10 m³)
KAILION KLFYD-10A site-based mobile trash compactor with about 10 m³ effective bin volume; sealed construction for communities and public sites.
Product Catalog
Mobile compactionKLFYD-8A Mobile Trash Compactor (8 m³)
KAILION KLFYD-8A site-based mobile trash compactor with about 8 m³ effective bin volume; sealed construction for communities and public sites.
Mobile compactionOverview
KLFYD-8A Mobile Trash Compactor (8 m³)
KAILION KLFYD-8A mobile trash compactor provides about 8 m³ effective bin volume for collection points that need high single-batch compaction without a dedicated building.
Factory technical sheet: overall dimensions 4300×2350×2250 mm; operating dimensions 6506×2350×2250 mm; compression chamber about 3 m³; hopper about 3 m³; equipment self-weight about 3.8 t.
Shared series features include Q355B bin material, NM400 compression-chamber floor, hydraulic/mechanical rear-door lock options with double-layer sealing strips, compaction density ≥0.75 t/m³, operating noise ≤75 dB and about 48 s compression cycle (factory sheet).
Key Features
- Site-based mobile trash compaction
- Sealed, leak-resistant bin construction
- 380 V / 7.5 kW drive (factory sheet)
- Intelligent electric control / remote controller
- Effective bin volume about 8 m³
- Stated daily capacity about 20 t/d
Specifications
Based on published site information. Final specs are confirmed in quotation.
| Model | KLFYD-8A |
|---|---|
| Effective bin volume | 8 m³ |
| Overall dimensions (mm) | 4300×2350×2250 |
| Operating dimensions (mm) | 6506×2350×2250 |
| Compression chamber / hopper | 3 m³ / 3 m³ |
| Self weight | About 3.8 t |
| Hook center height | 1295 / 1570 mm |
| Rail width | 1060 mm |
| Bin / floor | Q355B; floor 5 mm; chamber floor NM400 |
| Power | 380 V; motor 7.5 kW |
| Daily capacity (stated) | About 20 t/d |
| Compaction / noise / cycle | ≥0.75 t/m³; ≤75 dB; ~48 s |
| Controls / rear door | Intelligent electric box / remote; hydraulic or mechanical lock + double seals |
Product Catalog
Featured models

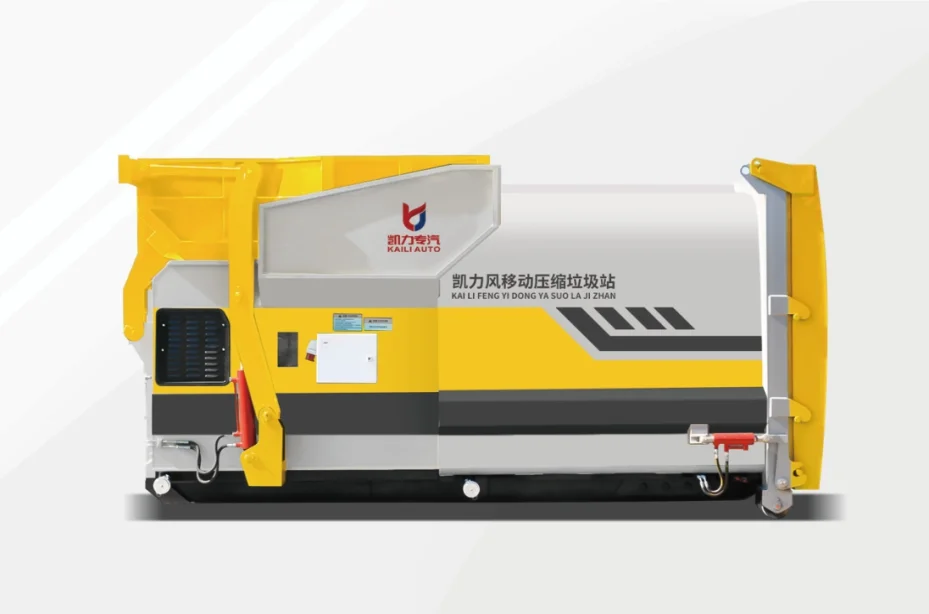

KLFYD-12A Mobile Trash Compactor (12 m³)
KAILION KLFYD-12A site-based mobile trash compactor with about 12 m³ effective bin volume; sealed construction for communities and public sites.

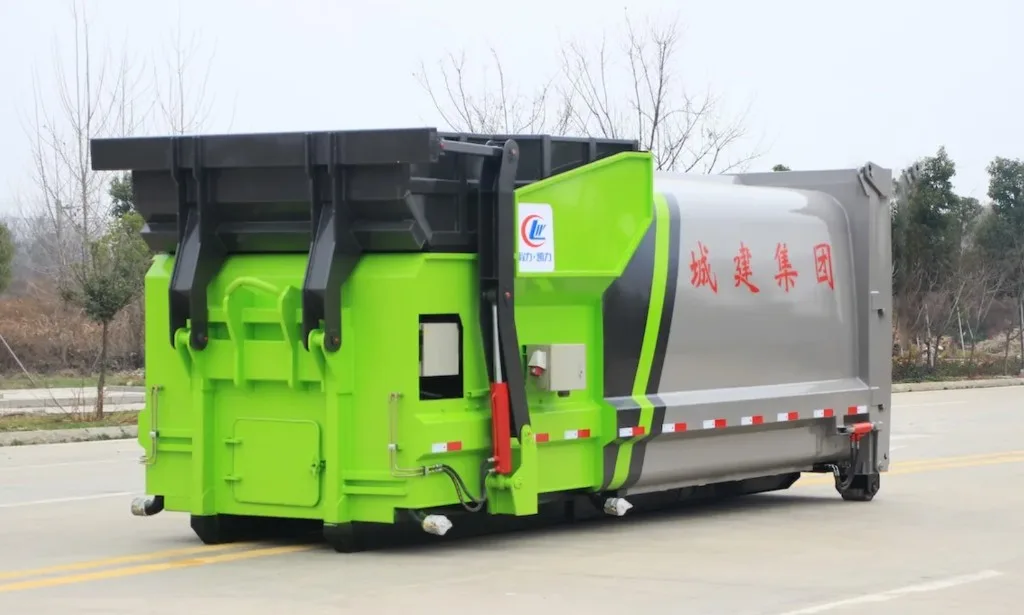

KLFYD-18A Mobile Trash Compactor (18 m³)
KAILION KLFYD-18A site-based mobile trash compactor with about 18 m³ effective bin volume; sealed construction for communities and public sites.
Let’s build the right vehicle for the work ahead.
Your operation. Your configuration.
Tell us about your application, operating environment and market requirements.
